Main uses
This product is widely used in biomedicine, traditional Chinese medicine clarification, bacteria recovery, blood products, plant extraction, health products, beverage, chemical, and other industries.
Main features
?♦ Vertical structure and small floor area.
?♦ Flexible shaft, drum is supported by hanging shaft, upper drive.
?♦ Transmission mechanism uses all-closed housing to prevent from dust pollution in transmission process.
?♦ Surface roughness is as high as Ra0.2-0.4um and meets GMP standards.
Configuration selection
?♦ Structure: cylindrical front door, drum type closed, drum type front door, swing type, etc.
?♦ Motor drive: common motor, explosion-proof motor and variable frequency motor
?♦ Distribution mode: panel center distribution and circular cone center distribution
?♦ On-line cleaning: Shower ball and shower pipe
?♦ Transmission housing: Fully-closed and semi-closed
?♦ Drum disassembly: mobile manipulator and mobile workbench
?♦ Temperature control: cooling coil
?♦ Electrical components: Brand supply
?♦ Surface treatment: mirror polishing, drawing and matting
?♦ Safety control: frequency converting control, nitrogen protection, vibration protection, speed monitoring, overload protection, open protection, and electromechanical interlocking
Materials:
?♦ Stainless steel 304, 321, 316 and 316 L
?♦ Carbon steel or cast iron lined with stainless steel

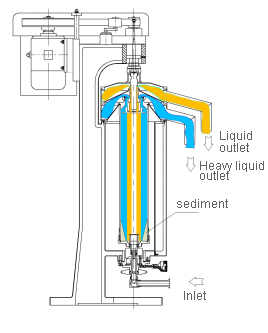

Working process chart

Technical parameters

Item	GF45	GF75	GF105	GF125	GF150
Drum diameter (mm)	45	75	105	125	142
Sedimentation volume (L)	0.45	2	5.5	7.4	10
Throughput capacity(t/h)	0.1	0.5	1.2	2	3
Drum speed (r/min)	28000	20000	16000	15000	14000
Maximum separation factor	19800	16770	15025	15500	15570
Motor power(kW)	0.6	1.5	2.2	3	3
Size (mm)	580*650*750	800*400*1200	800*700*1400	850*700*1600	800*700*1600
Weight (kg)	120	300	400	560	500
